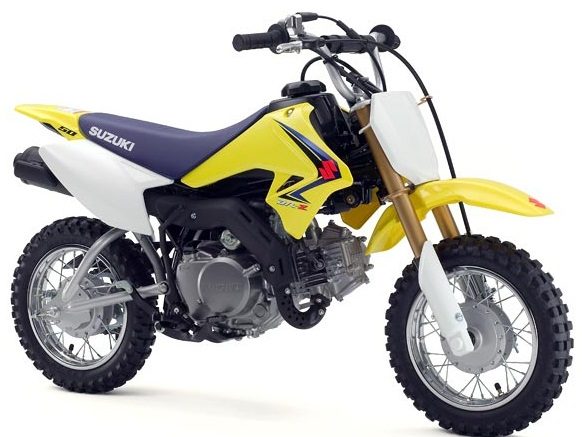

Suzuki DR-Z50

Specifications:

Engine

  • Engine CC49 cc
  • No Of Cylinder1
  • Max PowerN/A
  • Max TorqueN/A
  • Valves Per CylinderN/A
  • Fuel DeliveryCarburetor
  • Cooling SystemAir Cooled
  • Starting MechanismSelf start and kickstarter

Key Specs

  • Stroke41.8 mm
  • Bore39 mm
  • IgnitionElectronic ignition (CDI)
  • Compression Ratio9.7:1

Fuel Consumption

  • Fuel Tank Capacity3 L
  • Reserve Fuel CapacityN/A
  • MileageN/A
  • Overall Riding RangeN/A

Dimension and Weight

  • Kerb Weight54 kg
  • Length1320 mm
  • Width580 mm
  • Height790 mm
  • Wheelbase935 mm
  • Ground Clearance135 mm
  • Seat Height560 mm

Transmission

  • No. Of Gears3 Gears
  • ClutchAutomatic clutch

Braking

  • Front Brake TypeDrum
  • Rear Brake TypeDrum
  • Front Disc/Drum SizeN/A
  • Rear Disc/Drum SizeN/A

Chassis and Suspension

  • Chassis TypeN/A
  • Front SuspensionInverted Telescopic, Coil Spring
  • Rear SuspensionSwingarm Type, Coil Spring, Oil Damped

Electricals

  • BatteryN/A
  • HeadlightN/A
  • Tail LightN/A

Wheel and Tyres

  • Wheel Size10 inches
  • Wheel TypeSpoke
  • Front Tyre2.50,10 33J
  • Rear Tyre2.50, 10 33J
